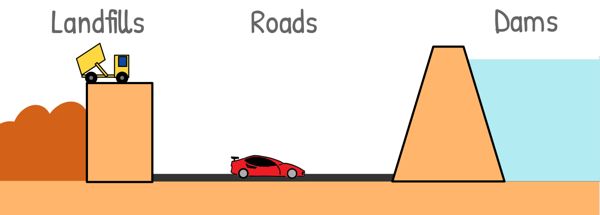

Soil itself is used as a construction material while constructing engineering structures such as roads, earth dams, landfills, and building foundations.
However, soil is made up of small particles that enclose empty spaces (pores or voids) between them. These voids can allow water or air to occupy the spaces, reducing the soil’s strength and stability.
For instance:
- In dams, excessive water percolation through voids can lead to seepage and erosion.
- In roads and buildings, the weight of vehicles or structures can compress these voids, causing undesirable settlement and structural deformation.
With proper techniques, we can reduce these voids and densify the soil before construction, a process known as soil compaction.
What is Soil Compaction?
Compaction is the process of densifying soil by mechanical means such as rolling, tamping, or vibration. It aims to:
- Increase soil density,
- Reduce void spaces, and
- Improve strength and stability.
When an externalconstruction, a force is applied, soil particles rearrange closer together, expelling air and reducing void volume. This decreases the total soil volume and increases its dry density — making it more capable of carrying structural loads.

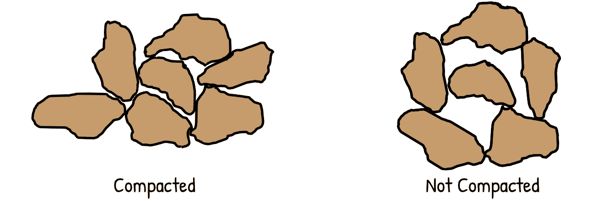

Mechanism of Compaction
Soil consists of:
- Solid particles, and
- Voids, which may contain air and/or water.
When compacted:
- The volume of voids decreases.an external
- Air is expelled.decreases.
- Density increases, and
- The soil becomes stronger and less compressible.
Thus, the higher the density, the lesser the settlement under loading.
Why Compaction Increases Soil Strength
Compaction increases particle contact and interlocking, leading to:
- Higher internal friction and shear resistance,
- Better load distribution, and
- Improved resistance against deformation or failure.
This enhanced contact also reduces the chances of localisedexpelled. stress, improving the overall stability of the soil mass.
Benefits of Soil Compaction
- Increases Bearing Capacity – The compacted soil can support heavier loads.
- Increases Shear Strength – Provides resistance against shear stresses and slope failures.
- Reduces Permeability – Fewer voids mean less water seepage, which islocalisedseepage, which is essential for dams and embankments.
- Prevents Settlement – Reduces long-term deformation under load.
- Improves Frost Resistance – Fewer voids mean less water can freeze and expand.
- Controls Volume Change – Minimises swelling or shrinkage due to moisture variation.
- Prevents Liquefaction – Reduces buildup of pore pressure during earthquakes.
Methods of Soil Compaction
Common mechanical methods include:
- Vibration: Used for sands and gravels to rearrange particles into a denser structure.
- Impact: Applying repeated blows to compact the soil.
- Kneading: Distorts and reorients soil particles, effective for cohesive soils.
- Pressure: Static load applied using rollers or plates.

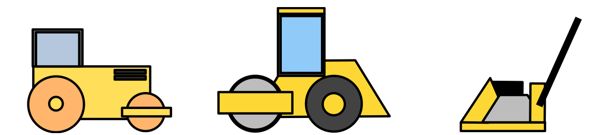

Equipment used:
- Vibratory rollers
- Sheepfoot rollers
- Plate compactors
- Tampers
Compaction is typically carried out in layers (lifts), with each layer compacted before placing the next.
Measuring Compaction: Dry Density
Compaction is quantified by Dry Densitydry density (ρd):
ρd=WsV\rho_d = \frac{W_s}{V} dry densityρd=VWs
Where:
- Ws = Weight of soil solids
- V = Total volume of soil
Objective: Achieve the maximum dry density (MDD) — the densest possible arrangement of particles for a given compactive effort.
Important of soil Compaction
- It is an artificial process achieved by mechanical means, not natural consolidation.
- Volume reduction and density increase occur mainly due to the expulsion of air from voids.
- Partially saturated soils compact better than fully saturated ones because excess water hinders particle rearrangement.
- It is a short-term process, usually completed within minutes of mechanical effort.
- Compaction is most effective in well-graded soils (mixture of different sizes) such as sands and gravels.
Limitations and Cautions
While compaction enhances soil performance, over-compaction can cause problems:
- Reduced Permeability: May cause poor drainage and water-logging.
- Soil Ecosystem Disruption: Harms microorganisms vital for soil health.
- Root Growth Restriction: Prevents vegetation and reduces soil aeration.
Hence, engineers must ensure proper site investigation, choose the right equipment, and follow project-specific compaction standards. In landscaped areas, decompaction may be required post-construction to restore natural conditions.
Conclusion
Soil compaction is a vital step in civil engineering construction, ensuring that the foundation soil provides adequate strength, stability, and durability for the structures above.
Properly compacted soils prevent excessive settlement, reduce seepage, and enhance load-bearing capacity — contributing to the longevity and safety of infrastructure projects.
Key Takeaways
Compaction reduces voids and increases soil density.
It improves strength, stability, and load-bearing capacity.
Measured using dry density — aim for maximum value.
Avoid over-compaction to prevent ecological and drainage issues.
